Mixing Systems for Infant Formula
Produce infant formula powder with mixing systems designed for homogeneous distribution of low-dose ingredients, gentle product handling and efficient cleaning. Blending vitamins, salts and mineral complexes into a milk-based carrier requires consistent premix composition and a controlled ratio between the premix and the main powder batch.
Hosokawa Micron supplies powder mixing equipment and integrated systems for infant formula production. The Nauta conical screw mixer and Vitomix ribbon screw mixer support accurate batch blending, with equipment configurations adapted to the formulation, required production capacity, available installation height and cleaning procedures.
Processing challenges in infant formula blending
Infant formula blending combines low ingredient concentrations with large production batches. The process must distribute these ingredients consistently throughout the powder so that small portions of the finished blend have the required composition.
Key process requirements include:
- homogeneous distribution of vitamins, salts and mineral complexes
- consistent composition of the premix and final blend
- gentle mixing to limit damage to powder particles
- controlled discharge and transfer to limit segregation
- accessible equipment for inspection, sampling and cleaning
- efficient batch cycles without compromising blend uniformity
Mixer selection therefore involves more than mixing time alone. Ingredient charging, discharge, cleaning and transfer to packaging all influence the performance of the production line.
Accurate blending of premixes and carriers
Both the composition of the premix and its distribution throughout the carrier determine the uniformity of the final blend. These mixing stages need to be assessed against the ingredient concentrations, powder properties and required batch size.
Hosokawa Micron’s mixing technologies provide controlled powder movement with process conditions selected for the formulation. Trials with representative materials help determine the appropriate equipment configuration and mixing time.
Sampling and analysis are used to assess the distribution of selected ingredients. This provides a basis for establishing the mixing conditions required before scaling up the process.
Mixing technologies for infant formula

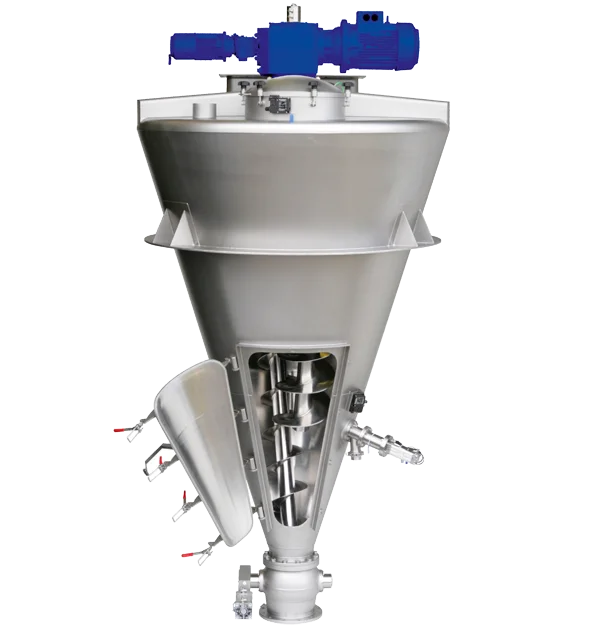

Nauta conical screw mixer
The Nauta® conical screw mixer by Hosokawa Micron provides gentle, low-shear blending for infant formula powders. Its mixing action supports the distribution of small quantities of functional ingredients throughout larger batches, with low energy input to the product.
Hygienic configurations can include a cantilevered mixing screw, polished product-contact surfaces, a large inspection door, a hygienic sampler and an ISEM ball segment valve. Cleaning provisions are selected to suit the production requirements.

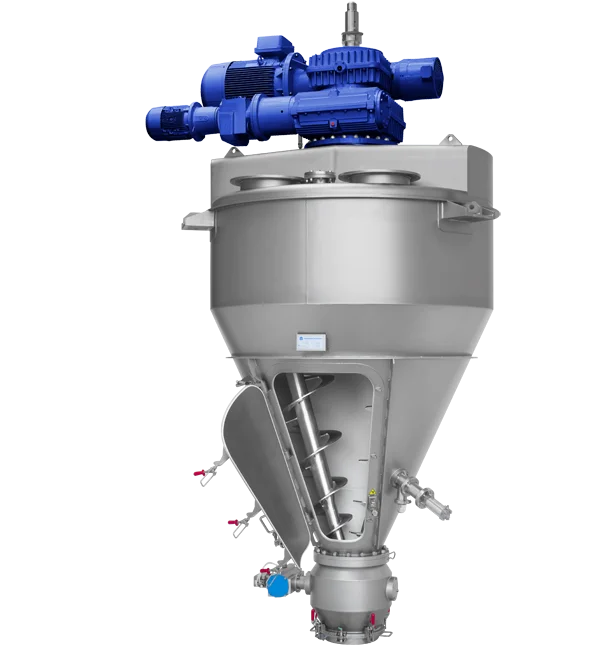

Vitomix ribbon screw mixer
The Vitomix ribbon screw mixer by Hosokawa Micron combines rapid powder circulation with adjustable mixing intensity. Its two conical ribbon screws support efficient blending where short batch times, production capacity and installation height influence equipment selection.
The mixer can be configured to provide access for inspection and manual dry cleaning. The required mixing time is established for the formulation and target blend uniformity, while the total production cycle also accounts for charging, sampling and discharge.
Hygienic design and cleaning
Infant formula mixing equipment requires careful attention to product-contact surfaces, inspection access and the selected cleaning method. Hosokawa Micron adapts the mechanical and hygienic design to the application, taking relevant hygienic engineering guidelines into account.
Depending on the configuration, equipment features can include:
- sanitary mixing screws and finished product-contact surfaces
- dust- and liquid-tight access doors
- hygienic sampling provisions
- access for manual dry cleaning
- integrated clean-in-place provisions
- ISEM ball segment valves for rapid, controlled discharge
Dry cleaning and wet cleaning place different demands on the installation. The cleaning strategy is therefore defined during system design, together with access requirements, product changeovers and procedures for returning the equipment to production.
Integrated infant formula mixing systems
Consistent blend quality depends on how the mixer interacts with the surrounding equipment. Ingredient feeding, weighing, premix addition, batch mixing and discharge must be coordinated to maintain the required composition and production rate.
Hosokawa Micron can integrate mixing equipment with powder handling and process control in a system tailored to the application. System design considers batch capacity, transfer to packaging, cleaning access and available installation height.
For broader dairy powder applications, explore our milk powder processing systems.
Test before you invest
Run trials with your own materials on lab and production-scale equipment at our 2,000 m² Test Centre in the Netherlands. Our experienced process specialists work with you to determine the right process, equipment or system configuration for your application. Each trial is supported by a detailed technical report, helping you select the right solution with confidence.
Learn more
Talk to our experts
Discuss your infant formula formulation, mixing accuracy, batch capacity and cleaning requirements with our process specialists to determine a suitable equipment or system configuration.
